HON 850

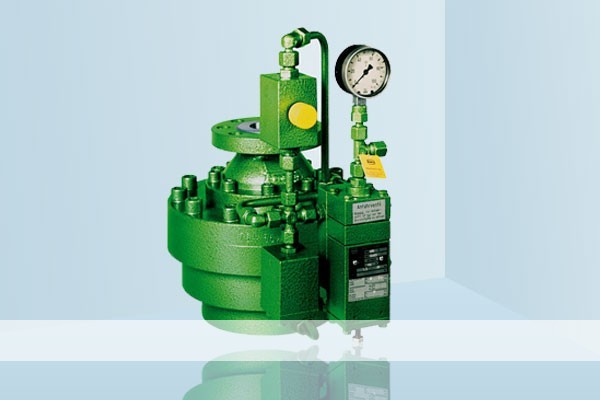

HON 850 Variflo™ enables highly safe and accurate gas transmission and distribution of natural, non-aggressive gases such as nitrogen, carbon dioxide and propane, and other gases on request. Ideal for offtake stations, power plants and industrial facilities, it can operate under a wide range of pressure conditions.


Model
HON 850 Variflo
Categories
Honeywell safety devices/Safety Relief Valves
Brand
Honeywell

Features include:

-Wide range of operating pressures
-High regulating accuracy
-Diaphragm valve/grid plate design with reduced flow options available
-Few parts, easy to maintain, quiet operation
-Pilot options include HON 630, HON 640a and S600
-Optional relief valve version using RMG 642 pilot
-Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
-CE registration according to PED
-Max. inlet pressure pu max: 100 bar
-Min. inlet pressure pu min: 3 bar
-Outlet pressure range Wd: 0.15 bar to 40 bar
-Minimum pressure drop: 0.5 bar
-Class of lock-up pressure zone: SZ 2.5
-Max. differential pressure: Class 150: 19 bar, Class 300: 50 bar, Class 600: 70 bar
-Temperature range: 20 to 60 °C
-Pipe sizes: DN 50, DN 80, DN 100
-Connection (optional): DIN flange according to PN 16, Class (ANSI) 150, Class (ANSI) 300, Class (ANSI) 600

All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
