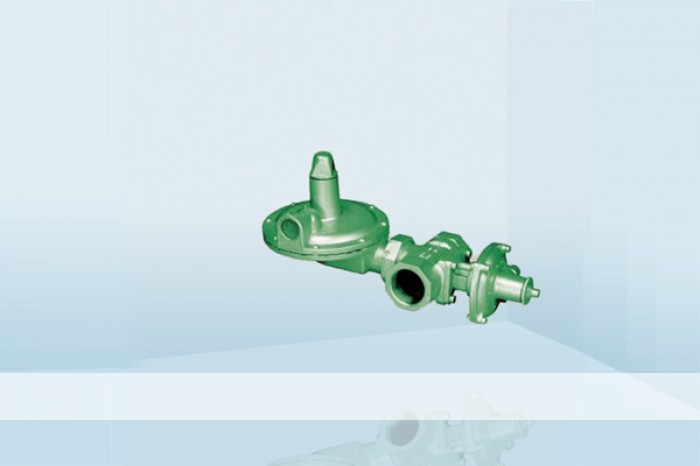

HON 240 Single Diaphragm Regulator

HON 240 gas pressure regulator offers accurate, safe and dependable gas regulation capabilities. The product is used in a wide range of application and facilities such as domestic and business premises, small industrial feeds, burners, heater units and boilers.​​​​


Model
HON 240 Single Diaphragm Regulator
Categories
Honeywell regulators/Gas Pressure Regulators up to PN 16 (ANSI 150)
Brand
Honeywell

Features include:

-Diaphragm casing can be rotated through 360° relative to regulator body (without vent limiting device)
-Rapid response to load changes
-Wide range of interchangeable orifices
-Regulator can be installed in any position
-Can be fitted with integral over-pressure (OPCO) or under-/over-pressure cut-off valve (UPCO/OPCO)
-May be optionally fitted with a safety diaphragm and vent limiting device (VLD) for applications requiring no vent piping per ANSI Z21.80/CSA 6.22.
-Cartridge-type diaphragm and valve assembly for ease of maintenance
-Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
-Max. inlet pressure pu max: up to 10.3 bar
-Outlet pressure range Wd: 0.01 to 0.21 bar
-SSV setting range
-Wdo 0.035 to 0.26 bar
-Wdu 0.01 to 0.03 bar
-Temperature range: 40 to 60°C

Connection: Pipe screw connection R ¾", R 1"

Type available
-P – without internal Safety Relief Valve (SRV)
-R – with internal Safety Relief Valve (SRV)
-LR – internal SRV
-SD - safety diaphragm

All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device fulfil the ATEX requirements.

Honeywell

Honeywell announced it has completed its acquisition of the Elster division of Melrose Industries plc, a leading provider of thermal gas solutions for commercial, industrial, and residential heating systems and gas, water, and electricity meters, including smart meters and software and data analytics solutions. Elster also manufactures gas metering and pressure control devices, as well as total solutions for the gas transmission and distribution industry. After the acquisition, Honeywell secured it's position as world's leading company in providing solutions and products in oil & gas industry. According to Fortune ranking, it is one of the 100 largest companies in the world. Immense portfolio, high quality products and competative prices highlight Honeywell above it's competition.

Honeywell Process Solutions (HPS) is a global leader with over 40 years of experience delivering process automation and control solutions that help industrial customers run their operations safely, reliably, efficiently and sustainably through innovative technologies, services and domain expertise. With more than 12,000 employees around the world, HPS serves customers in more than 125 countries in the oil & gas, refining, petrochemicals, pulp & paper, specialty chemicals, pharmaceuticals, industrial power, and mining & minerals industries.
