HON 704

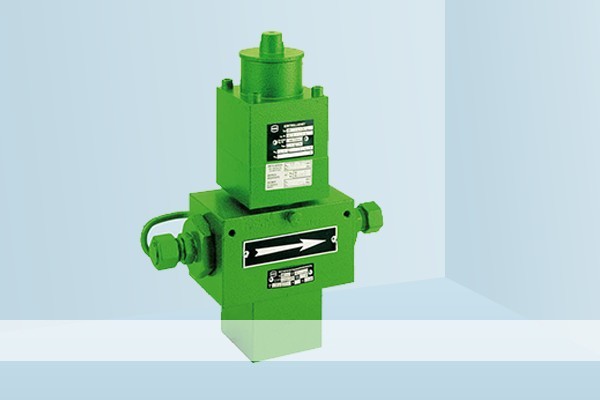

HON 704 is a safety shut-off valve (SSV), direct-acting or pilot-operated, according to DIN EN 14382.​​​​


Naziv proizvoda
HON 704
Kategorije
Honeywell sigurnosni uređaji/Safety Shut-Off Valves
Brend
Honeywell

Features include:

-Device for industrial facilities and individual consumers
-Also suitable for low-load lines in larger gas pressure regulating stations
-Compact and simple construction
-Easy to maintain due to exchangeable function units (cartridge assembly)
-Design with actuator systems: K 1a, K 2a/1, K 2a/2, K 16, K 17, K 18, K 19
-Function Class A (B)
-Optionally with vent valve HON 915
-Suitable for non-aggressive gases, other gases on enquiry
-CE-registration according to PED
-Max. admissible pressure PS: 100 bar
-Max. operating pressure pmax: up to 100 bar
Outlet pressure range
-For over-pressure: Wdso 50 mbar to 90 bar
-For under-pressure: Wdsu 10 mbar to 90 bar

Connection
-Pipe connections according to DIN EN ISO 8434-1 (DIN 2353), PN 100, for pipe diameters 10 mm through 42 mm DIN flange PN 25, PN 40 and Flange Class 300, Class 600 according to ANSI 16.5 with transition pieces in DN 25, DN 40 and DN 50
-Response time t: 0.1 to 0.3 s

Additional features (as requested by customer)
-Electromagnetic release
-Electric signal sensor for valve position 'closed' (proximity switch)
-Manual release
-Valve combination available together with HON 200 and HON 201

All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.

HON 704 Brochurepdf dokument (0.53MB)
