- Naziv proizvoda

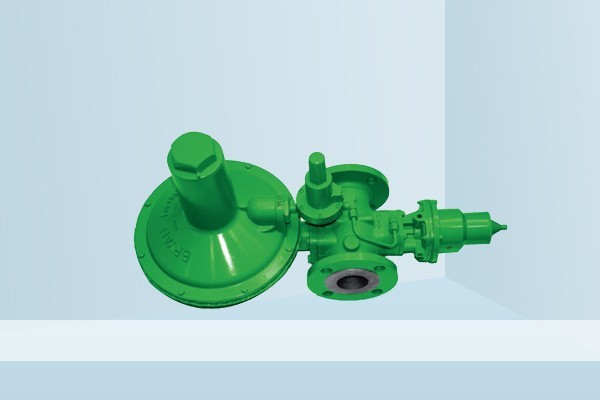

- HON 273PL Pilot Operated Regulator
- Honeywell-RMG Kassel, Bryan Donkin, Gorter /Regulatori pritiska gasa do PN 16 (ANSI 150)
-Installation of different valve seat diameters is available
-Can be fitted with an over-pressure cut-off valve (OPCO) or an under-/over-pressure cut-off valve (UPCO/OPCO)
-Pilot-operated for superior accuracy
-PFM application version available (+/- 1% abs.)
-Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
-Max. inlet pressure pu max: up to 19 bar (10 bar with Safety Shut-off Valve)
-Outlet pressure range Wd: 0.14 to 2 bar
-SSV setting range (see SSV HON 309)
Connection: R 1 ¼", R 1 ½", R 2"
-DN 50 (inlet/outlet)
-Class (ANSI) 150RF, Class (ANSI) 150FF, PN 16RF and PN 16FF
-Temperature range: 20 to 60 °C
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
