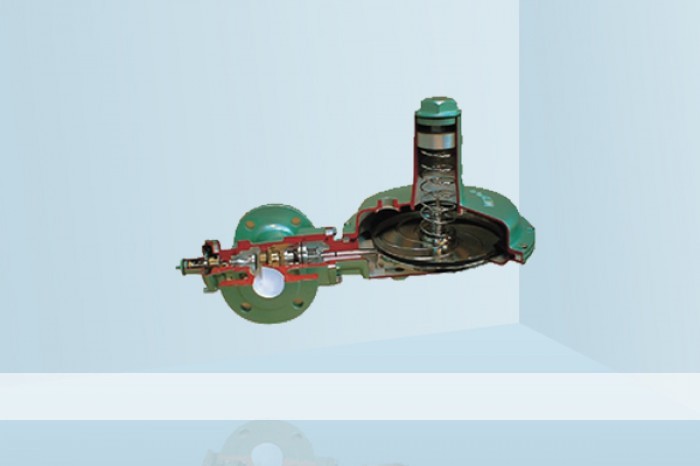

HON 277 Hi-Flo Regulators

HON 277 Hi-Flo regulator is designed for accurate, safe and dependable pressure controlled supply for gas distribution in offtake stations, commercial and industrial facilities. It is ideal for natural, non-aggressive and manufactured gases, in domestic, business premises and industrial feeds to burners, heater units and boilers.


Naziv proizvoda
HON 277 Hi-Flo Regulators
Kategorije
Honeywell-RMG Kassel, Bryan Donkin, Gorter /Regulatori pritiska gasa do PN 16 (ANSI 150)
Brend
Honeywell

Features include:

-Diaphragm casing can be rotated through increments of 45° relative to body
-Rapid response to load changes
-Regulator can be installed in any position
-Can be fitted with an over-pressure cut-off valve (OPCO) or combined under-/overpressure cut-off valve (UPCO/OPCO)
-Easy to maintain
-Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
-CE registration according to PED
-Max. inlet pressure pu max: up to 10 bar
-Outlet pressure range Wd: 0.01 to 0.5 bar
SSV setting range
-Wdso 0.35 to 0.6 bar
-Wdsu 0.01 to 0.03 bar

Connection: Flange DN 50
Type
-P – without internal Safety Relief Valve (SRV)
-R – with internal Safety Relief Valve (SRV)
-Temperature range: 20 to 60 °C

All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
