- Naziv proizvoda

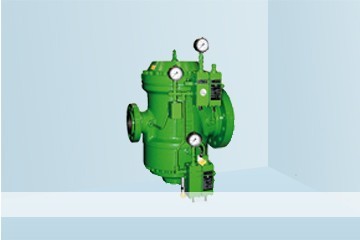

- HON 505 Gas Regulator
- Kategorije
- Honeywell-RMG Kassel, Bryan Donkin, Gorter /Gasni regulatori pritiska do ANSI 600 i ventili sa električnim aktuatorom
- Brend
- Honeywell
Features include:
-Device used for gas distribution
-Compact design
-Active and monitor regulator in one housing
-Active with fail-open function
-Monitor with fail-close function
-Fewer parts, easy to maintain, quiet operation
-Suitable for non-aggressive gases, other gases on enquiry
-CE registration according to PED
-Max. admissible pressure PS: 100 bar
-Max. inlet pressure pu max: up to 100 bar
-Outlet pressure range Wd: 0.3 bar to 90 bar
-Minimum pressure drop: 2 bar, others on enquiry
-Max. pressure drop: 90 bar
-Class of lock-up pressure zone: SZ 2.5
Active regulator applicable with pilot:
-HON 630 (two-stage design)
-HON 630-1 (single-stage design) for inlet pressure variation up to 15 bar
-Monitor regulator applicable with pilot: HON 650 (single/double stage design)
Connection
-DIN flange PN 40
-Flange Class 300, Class 600 according to ANSI 16.5
-With pipe sizes inlet/outlet - DN 50/100, DN 80/150, DN 100/200
All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device fulfil the ATEX requirements.
