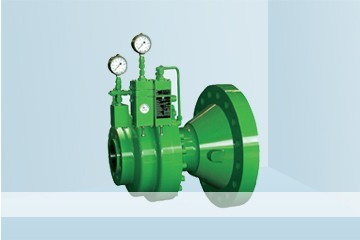

HON 512 Gas Regulator

Honeywell offers HON 512, a rugged gas pressure regulator with excellent regulating dynamics built to DIN EN 334 standards. It is ideal for non-aggressive gases in gas turbines, transfer stations in gas transport networks for power plants and industrial facilities. ​


Naziv proizvoda
HON 512 Gas Regulator
Kategorije
Honeywell-RMG Kassel, Bryan Donkin, Gorter /Gasni regulatori pritiska do ANSI 600 i ventili sa električnim aktuatorom
Brend
Honeywell

Features include:

-Well suited for gas turbines due to excellent regulating dynamics
-Reverse flow protection as option
-Rugged and simple design
-High KG values of pipe sizes due to axial flow
-Also available with reduced KG values for best adaptation to operating conditions
-Can be supplied outlet DN = inlet DN or with noise-reducing outlet
-Suitable for complex pneumatic & electric automation systems
-Fail-close and fail-open function also available
-Suitable for non-aggressive gases, other gases on enquiry
-CE registration according to PED
-SIL certified according to IEC61508
-Max. admissible pressure PS: 100 bar
-Max. inlet pressure pu max: up to 100 bar
-Outlet pressure range Wd: 0.3 bar to 90 bar
-Minimum pressure drop: 1.5 bar, others on enquiry
-Class of lock-up pressure zone: SZ 2.5

Connection:
-DIN flange PN 25, PN 40
-Flange Classes 150, 300 and 600 according to ANSI 16.5 with pipe sizes inlet
DN 25, DN 50,DN 80, DN 100, DN 150, DN 200, DN 250, DN 300
-Flange Class 900 upon request

All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
