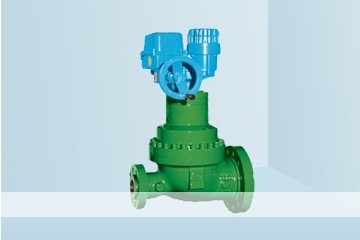

HON 530-E Control Valve

HON 530-E is an electrically operated flow control valve up to size DN 150/300. It is also equipped with incorporated SSV up to DN 150/300 to class 600 according to DIN EN 334/14382​.​​​​​​


Naziv proizvoda
HON 530-E Control Valve
Kategorije
Honeywell-RMG Kassel, Bryan Donkin, Gorter /Gasni regulatori pritiska do ANSI 600 i ventili sa električnim aktuatorom
Brend
Honeywell

Features include:

-Device for flow and pressure control tasks
-Safety Shut-off Valve (SSV) for ​DN 25/50, DN 80/150 and DN 100/200
-Optionally: actuator systems K 10a, K 11a/1, K 11a/2, K 16, K 17, K 18, K 19
-Valve sleeve with full pressure compensation
-Noise reducing devices as a standard feature
-Bubble-tight shut-off
-Suitable for non-aggressive gases, other gases on enquiry
-CE registration according to PED
-Max. admissible pressure PS: 100 bar
-Max. inlet pressure pu max: up to 100 bar
SSV setting range:
-For overpressure: Wdo 0.08 bar to 90 bar
-For underpressure: Wdu 0.01 bar to 90 bar

Connection
-DIN flange PN 16, PN 40
-Flange according to ANSI 300, ANSI 600 in DN 50/100, DN 80/150, DN 100/200, DN 150/300 (Class 900 on enquiry)

Accessories: Electronic control (e.g., for pressure and flow); Other regulating tasks according to customers' requirements

All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.

HON 530-E Brochurepdf dokument (0.66MB)
