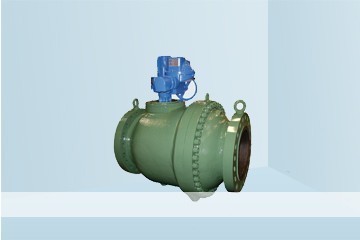

HON 530-E WG Control Valve

Honeywell offers the HON 530-E WG flow control valve with an electric actuator for electronic flow or pressure control in accordance with the DIN EN 334 standard. It is ideal for feeding gas into and/or withdrawing gas from gas storage facilities and important gas mains. ​​​​​​


Naziv proizvoda
HON 530-E WG Control Valve
Kategorije
Honeywell-RMG Kassel, Bryan Donkin, Gorter /Gasni regulatori pritiska do ANSI 600 i ventili sa električnim aktuatorom
Brend
Honeywell

Features include:

-Valve sleeve with full pressure compensation
-Noise reducing devices as a standard feature
-Bubble-tight shut-off
-Axial flow high KG value depending on the pipe size
-In case of a current failure, valve remains in its last position
-Control speeds are frequency-dependent and are set by means of a frequency converter depending on operating conditions
-Suitable for non-aggressive gases, other gases on enquiry
-CE-registration according to PED
-Max. admissible pressure PS: 100 bar
-Max. inlet pressure pu max: up to 100 bar

Connection: Flange Class 600 and Class 900 according to ANSI 16.5

All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.

HON 530-E WG Brochurepdf dokument (0.52MB)
