- Naziv proizvoda

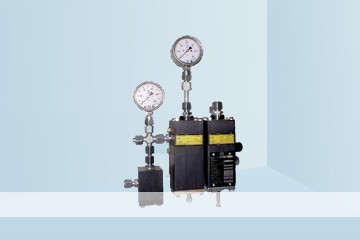

- HON 650
- Kategorije
- Honeywell-RMG Kassel, Bryan Donkin, Gorter /Piloti za gasne regulatore pritiska
- Brend
- Honeywell
Features include:
-High regulating accuracy even in case of wide inlet pressure variation
-Double control stages, single-stage version option
-With inlet-pressure and loading-pressure gauges and upstream fine-mesh filter HON 905, also available with outlet pressure gauge (optionally)
-Optionally with vent valve HON 915
-Optionally with electric remote setpoint adjustment
-Suitable for non-aggressive gases, other gases on enquiry
-CE registration according to PED in combination with HON gas pressure regulators
-According to DIN EN 334, the pilot is an integral component of this device
-Max. admissible pressure PS: 100 bar
-Max. inlet pressure pu max: up to 100 bar
-Outlet pressure range Wd: 0.3 bar up to 90 bar
All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device fulfil the ATEX requirements.
