- Naziv proizvoda

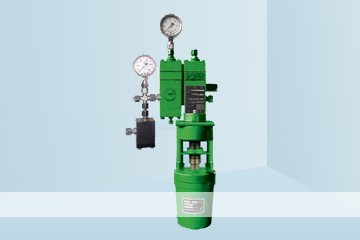

- HON 650-FE
- Honeywell-RMG Kassel, Bryan Donkin, Gorter /Piloti za gasne regulatore pritiska
-Pilot with electric remote setpoint adjustment for stations with variable outlet pressure
-Setpoint may be adjusted from control room or similar
-Electric actuator with drive shaft according to DIN/ISO 5210 T1 F10, fitted to control stage
-Manual setpoint adjustment on electric actuator is possible
-Optionally with vent valve HON 915
-Suitable for non-aggressive gases, other gases on enquiry
-CE registration according to PED in combination with HON gas pressure regulators
-According to DIN EN 334, the pilot is an integral component of this device
-Max. admissible pressure PS: 100 bar
-Max. inlet pressure pu max: up to 100 bar
-Outlet pressure range Wd: 0.3 bar up to 90 bar
-Details concerning motor and electrical connections on enquiry.
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
